R-2R DAC
Proprietary R2R + DSD Architecture
True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)
Low Thermal Effect, High Precision Hand-Matched 0.005% Resistors
FEMTO Crystal 45.1548MHz, 49.152Mhz
Key Features
Custom Gold-plated RCA Jacks
Low Noise Power Supply
Digital Signal Processing via FPGA
Adaptive FIFO Buffer and Reclocking
USB inputs support DSD1024. USB supports PCM1536 KHz,
Proprietary USB Audio Solution Based on STM32F446 ARM Cortex-M4 MCU
Licensed Thesycon USB Driver For Windows Platform
Driverless On Mac & Linux
DSD
DSD64 All input
DSD64-DSD1024 USB Only
PCM
24bit/44.1, 48, 88.2, 96, 176.4, 192 KHz All Input
44.1-1536 KHz USB Only
Digital Input
COAX x 2
OPT x 2
USB2.0 Type B
Analog Output
RCA : 2.0V RMS, Output Impedance 625Ω
XLR :4.0 V RMS,Output Impedance 1250 Ω
Sampling Mode : Non-Oversampling NOS / Oversamping OS
Filter Selection : Slow / Sharp
AC Power Requirement : 115V/60Hz or 230V/50Hz
Power Consumption : ≤20W
Frequency Response : 20-70KHz (+1/-3dB)
Level and Gain : 4.46V RMS@0dBFS
THD+N : ≤0.003%(A)
S/N Ratio : ≥119dB(A)
Dynamic Range : ≥119dB
Stereo Crosstalk : ≤-87dB
Dimension :220mm x 255mm x 65mm
Weight : 3.2 Kg
Color : Black / Silver
Warranty : 12 Months

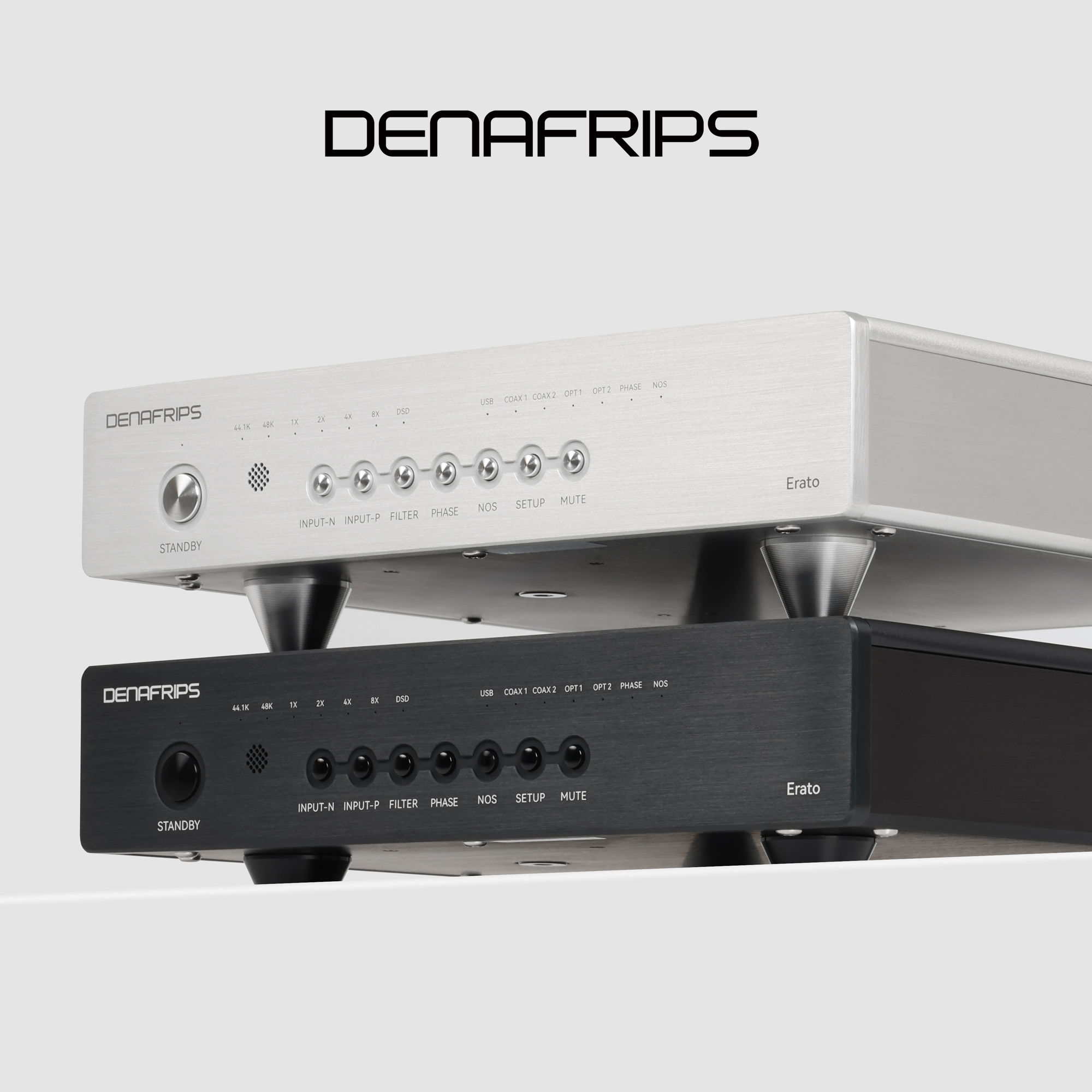

Erato DAC
Due to logistics reasons, this type of
detachable battery is prohibited from beingincluded in transportation, so remote controlshipments do not come with batteries.Customers are requested to provide their ownCR2032 3V button batteries.Thank you for your understanding!
