Technical Highlights

  • Proprietary FPGA DSP Processing Architecture
  • FIFO Buffer and Reclock with Internal Crystal
  • TCXO Temperature Compensated Crystal Oscillator
  • Optical Isolated All Digital Input Interfaces
  • Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
  • Licensed Thesycon USB Driver For Windows Platform
  • Driverless On Mac & Linux
  • External Clocks Input Supported
  • 60VA UPOCC Copper O-Core Transformer



DSD

  • DSD64 (DoP) on Coax/AES/Opt Input & Output
  • Upto DSD512 On USB Input & I²S Output

PCM

  • 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Output
  • Up to 768KHz On USB Input & Up to 384KHz on I²S Output

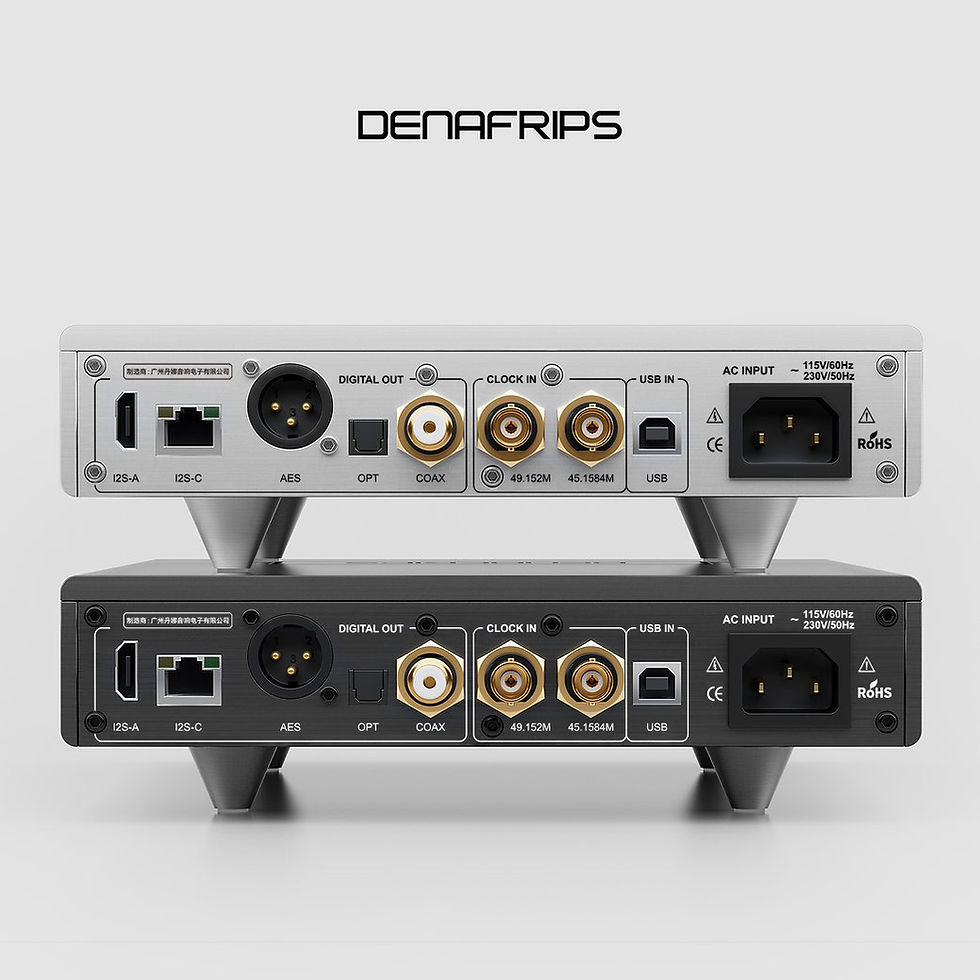

Digital Input

  • USB2.0 Type B



External Clock Input  BNC 75Ω

  • 45.1548MHz
  • 49.152Mhz



Digital Output

  • Coax SPDIF via RCA
  • TOSLink x 1
  • AES/EBU x 1
  • I²S HDMI LVDS Standard
  • I²S RJ45 LVCMOS Standard



AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage, Manual Selector)

Fuse: T2A/250VAC. 5x20mm 2A Slow Blow

Power Consumption: ≤20W

Dimension: 220W x 250D x 44H mm (Feet +18mm)

Package Dim: 375 x 330 x 115 mm

Package Content: DDC & Power Cord. No remote control.

Weight: 3.5 Kg

Color: Black



Warranty: 12 Months

DENAFRIPS IRIS 12TH

SKU: 78
$559.00Price
Color: Black
Quantity
  • Orders shipped to the U.S. may incur customs fees (we provide duty optimization within a compliant framework). These fees are the responsibility of the recipient. By placing an order, you acknowledge and agree to this. Please note that if a package is returned due to unpaid customs fees, any resulting costs will need to be covered by the recipient.
